蜗轮减速机UCX为成大蜗轮减速机系列里的：出力中空具固定孔，入力附法兰减速机，即此减速机无出力轴，有入力法兰。此型号减速机为双段减速机，可入力在下，入力在左，入力在右。在选择时需要确定安装方式。

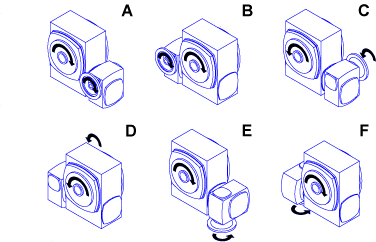

蜗轮减速机UCX轴向图：

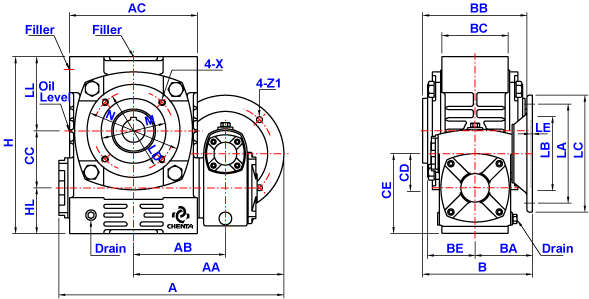

蜗轮减速机UCX详细尺寸：





速比 : 1/100 ～ 1/3600
		Input-Bore	Output-Bore
单位：mm

Size	A	AA	AB	AC	B	BA	BB	BC	BE	CC	CD	CE	H	HL	LL	LD
40/70	290	211	131	154	150	73.5	130	88	62	70	40	90	205	50	85	100
50/80	316	212	132	175	169	97	144	97	68	80	50	110	232	60	92	115
60/100	374	241	161	224	184	97	175	116	83	100	60	140	310	80	130	130
70/120	431	272	192	264	218	118	200	136	95	120	70	165	370	95	155	165
	451	292			220	120
80/135	481	311	211	295	245	130	230	154	110	135	80	185	425	105	185	200

Size	Input Bore			Output Bore			Flange					M	N	X
	U	T	V	S	W	Y	LA	LB	LC	LE	Z1
40/70	11	4	12.8	30	8	33.5	130	110	160	4	M8	80	115	M8
50/80	11	4	12.8	35	10	38.5	130	110	160	4	M8	95	135	M10
	14	5	16.3
60/100	11	4	12.8	40	12	43.5	130	110	160	4	M8	110	160	M12
	14	5	16.3
70/120	14	5	16.3	45	12	48.5	130	110	160	4	M8	130	200	M12
	19	6	21.8				165	130	200	5	M10
80/135	19	6	21.8	60	15	65	165	130	200	4	M10	160	233	M12
	24	8	27.3

Size	HP	Oil	Weight	Rating	Download
					CAD	PDF
40/70	0.25	0.65	18
50/80	0.25	1.05	24
	0.5
60/100	0.25	1.7	43
	0.5
70/120	0.5	3	74
	1
80/135	1	4.75	87
	2
