速比 : 1/100 ～ 1/3600
		Input-Bore
单位：mm

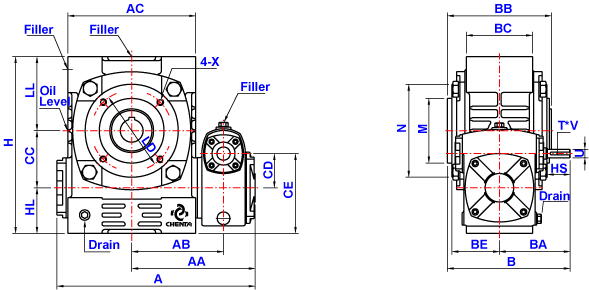

Size	A	AA	AB	AC	B	BA	BB	BC	CC	CD	CE	H	HL	LL	BE	LD
40/70	279	185	131	154	148	83	130	88	70	40	90	205	50	85	62	100
50/80	289	184	132	175	179	107	144	97	80	50	110	232	60	92	68	115
60/100	352	219	161	224	211.5	124	175	116	100	60	140	310	80	130	83	130
70/120	417	258	192	264	240	140	200	136	120	70	165	370	95	155	95	165
80/135	462	287	211	295	275	160	230	154	135	80	185	425	105	185	110	200

Size	M	N	X	Input Shaft			Output Bore			Oil	Weight	Rating	Download
				HS	U	T * V	S	W	Y				CAD	PDF
40/70	80	115	M8	25	12	4 * 2.5	30	8	33.5	0.65	17
50/80	95	135	M10	30	12	4 * 2.5	35	10	38.5	1.05	23
60/100	110	160	M12	40	15	5 * 3	40	12	43.5	1.7	42
70/120	130	200	M12	40	18	5 * 3	45	12	48.5	3	73
80/135	160	233	M12	50	22	7 * 4	60	15	65	4.75	84
